Name: UNI-DS v8
SKU: 859649

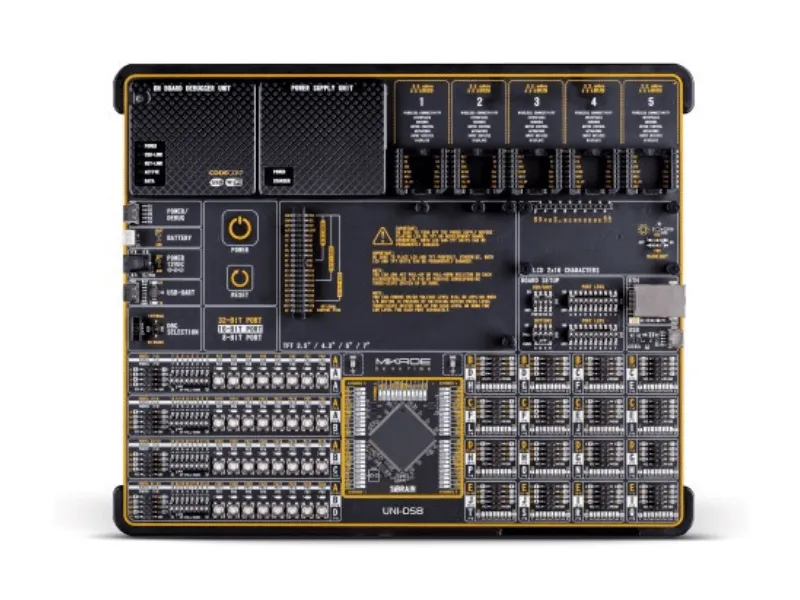

UNI-DS v8

Universal development board

WORLD’S FIRST DEBUGGER OVER WiFi

Programming & debugging over WiFi and USB-C
UNI-DS development board integrates CODEGRIP - the world's first programmer & debugger over WiFi and USB-C. This feature allows unlimited possibilities for development.

*CODEGRIP WiFi License is available as an additional feature.

Access anywhere, under any circumstances, at anytime
CODEGRIP enables you to place UNI-DS development board in almost any hardly accessible places such as hazardous environments, agricultural settings, and high-rise buildings while still retaining full debugging and programming access.

Advanced technical support

Debugging over WiFi enables our technical support to directly access the user's hardware and solve the problem. Replicating a user's hardware is no longer a challenge.

ON-BOARD CODEGRIP DEBUGGER

Free on-board CODEGRIP
CODEGRIP debugger & programmer over WiFi and USB-C currently supports more than 3300 microcontrollers from different vendors. And you get lifetime free updates with new microcontrollers and vendors.

CODEGRIP Suite
CODEGRIP Suite is a powerful software suite that offers complete control over the UNI-DS development board. It is used to intelligently manage programming and debugging tasks, as well as various other options and settings of the development board.

Plug and play
USB-C debugger enables effortless programming/debugging over a generic USB driver connection without the need for additional driver support.

NEW SiBRAIN STANDARD

SiBRAIN socket

The SiBRAIN socket facilitates extremely simple installation and replacement of a microcontroller (MCU) or processor on a development board. It allows absolute compatibility between the development board and any supported MCUs and processors, regardless of their pin number and architecture.

Freedom of choice

SiBRAIN standard allows working with microcontrollers from low pin count to high pin count on one board.

The UNI-DS development board is sold without a SiBRAIN add-on board. Choose from over 100 SiBRAIN add-on boards available now in our shop.

Multi-vendor support

The SiBRAIN standard currently supports 3300 microcontrollers from different vendors: Microchip, STMicroelectronics, Texas Instruments, and NXP, with even more vendor support coming soon.

NEW DISPLAY BOARD STANDARD

Display board connector

The UNI-DS development board features a new display connector. The new connector has female 2x20-pin support allowing different resolutions, screen sizes, and technologies. Currently, there are 16 high-quality TFT display boards to choose from.

Screen technology

The display board connector can be attached with various screen technologies. Currently available are the TFT capacitive and resistive boards. Future iterations will offer technologies such as OLED and e-Ink.

Screen sizes

Check out how your project looks on different screen sizes and resolutions. Choose from 3", 4", 5" and 7" displays with different resolutions - 320x240, 480x272 and 800x480 pixels.

IDEAL FOR RAPID PROTOTYPING

Rapid prototyping allows the engineer to take the most efficient and effortless way to envision the design ideas, capabilities, and limitations through measurable means. This is the crucial eliminating factor for time to market pressure.

5 mikroBUS™ sockets
The UNI-DS offers five improved mikroBUS™ sockets, , where you can place any of the 827 different Click boards™. This gives you infinite possibilities with the largest add-on board selection in the world.

Ready-to-use Click boards™

With 827 Click boards™ available, they are the fastest-growing range of add-on boards in the world. They enhance rapid development and accelerate time to market. These ready-to-use boards require no additional hardware configuration and save engineers time for testing and troubleshooting often associated with the prototyping phase.

Endless modularity

The ready-to-use 827 Click boards™ are saving time and money by offering complete hardware and software solutions instead of developing them from scratch. Choose one of the hundreds of Click boards™ out of these categories: mixed-signal, wireless connectivity, storage, interface, displays, human-machine interface, adapter, clock and timing, motor control, power management, and audio & voice.

FIRST CLASS POWER SUPPLY

State of the art power supply

UNI-DS offers a state-of-the-art power supply with constant power delivery and unprecedented flexibility. The power supply module is carefully designed to regulate, filter, and distribute the power noise-free.

In addition, it features convenient capacitive POWER and RESET buttons.

Uninterruptable power supply

The power supply unit supports a wide range of power sources that can be used: External 12VDC, USB, and a Li-Po/Li-ION battery. It also supports UPS functionality. When powered by the battery, it offers an ultimate degree of autonomy.

Programmable voltage output

The power supply module supports programmable voltage output, which can be used as a reference for various purposes, including A/D or D/A converters, comparators, and any other peripherals that require or can use an external reference voltage. The programmable voltage output can be controlled over the CODEGRIP Suite.

PREMIUM USER EXPERIENCE

Robust by design

The UNI-DS development board is 3.2 mm thick. Its sturdy and durable design eliminates the board from bending when working with it. All the board components are produced on surface-mounted technology standards, enabling a sturdy and compact design.

Sturdy on its feet

Every detail is carefully thought through, from the height-adjustable stand with non-slip pads to the ergonomic design, allowing comfortable project development.

Clear and intuitive layout

UNI-DS has a clean and elegant design, allowing the user to instantly understand how to set it up and tune it according to needs easily. The development board is divided into several sections, arranged so that all the related interactive components, such as switches, buttons, indicators, and connectors, are logically positioned and grouped.

APPRECIATE YOUR TIME

CHOOSE SiBRAIN CARD

OPTIONAL

ENJOY CABLE FREE WORLD

Programming over WiFi is a unique feature of CODEGRIP, enabling users to program the MCU from a remote location. Combined with the ability to be powered from the target device, this allows programming and debugging to be performed completely wirelessly. However, this is an optional feature of CODEGRIP and requires a WiFi license.

After you purchase a WiFi license for CODEGRIP you will receive an email with license registration code and instructions to activate this feature in your CODEGRIP. Single WiFi license can be used only once, thus unique WiFi license is required per CODEGRIP.

REMOTE BUT SECURE

Secure Socket Layer (SSL) is a standard security technology for establishing an encrypted link between a server and a client. It enables encryption of TCP data traffic, ensuring a high level of protection. CODEGRIP offers feature to encrypt communication using SSL, preventing any unauthorized access during the programming or debugging over WiFi.

After you purchase an SSL license for CODEGRIP you will receive an email with license registration code and instructions to activate this feature in your CODEGRIP. Single SSL licence can be used only once, thus unique SSL license is required per CODEGRIP.

CHOOSE DISPLAY BOARD

SUPPORTED MCUs

SUPPORTED DISPLAYS

WHAT'S ON BOARD

The complete board area is divided into several sections, arranged so that all the related components, switches, buttons, indicators, and connectors are logically positioned and grouped together.
