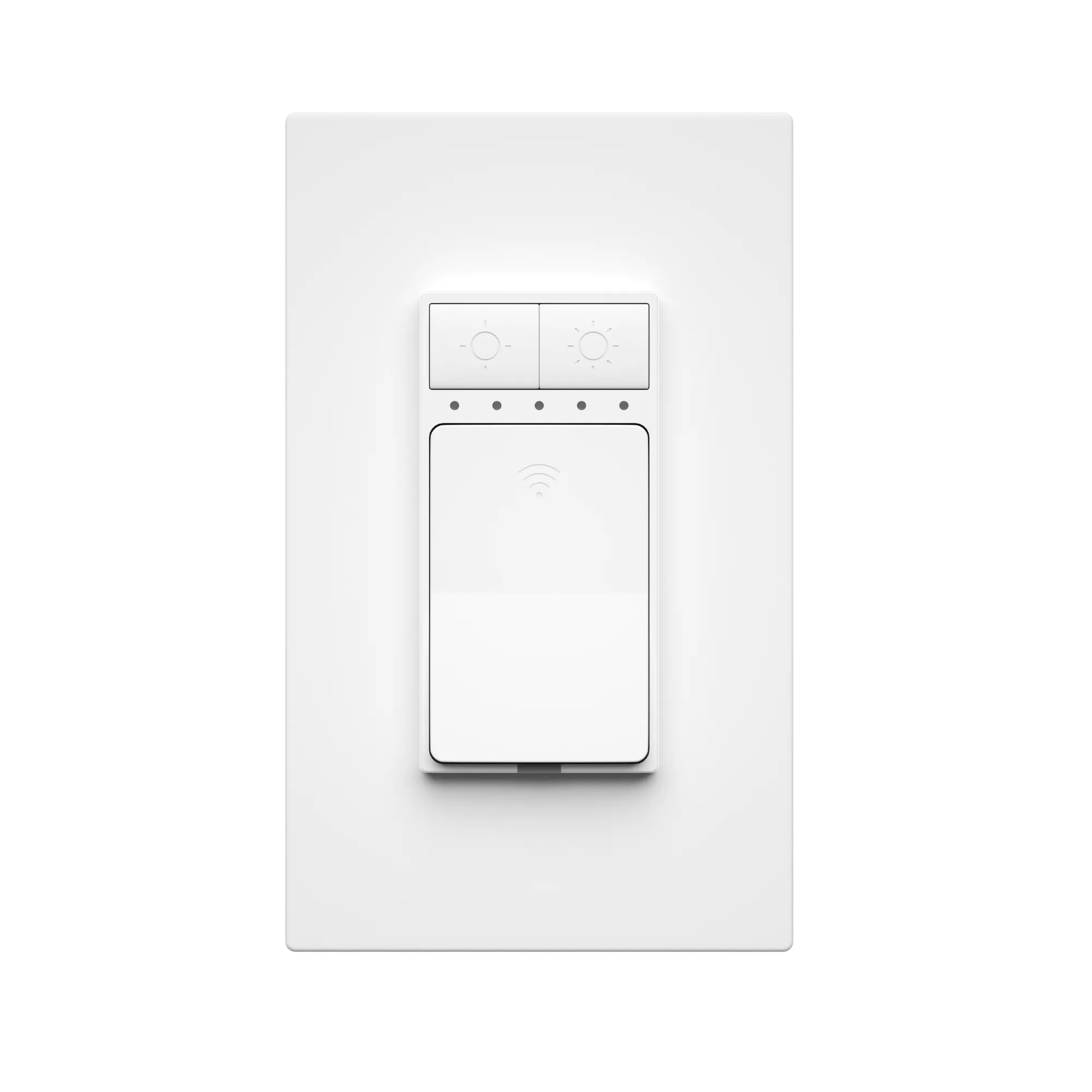

Name: Dimmer Switch, YoLink Hub Required
SKU: 859980

INTRODUCTION:

U.S. standard “1-gang” size smart app-controlled light switch with dimmer functions

FEATURES:

White decorator style, with coordinating faceplate
Standard one-pole non-dimming switch
10 amp maximum current (see full specs, below)
Neutral wire required
Multi-color status LED
Remote app control and status
YoLink Control allows for your In-Wall Switch to be controlled directly by other YoLink devices, without an internet connection
Alexa and Google voice assistant, Home Assistant and IFTTT integration
YoLink’s industry-leading long range communication

BENEFITS:

Make connected 120V-powered lighting or equipment smart by connecting it to the In-Wall Switch
Remotely-control connected lighting, equipment, and devices from the YoLink app from anywhere at any time
Add security to your life by scheduling lights, connected equipment, and devices to turn on at pre-determined times, to make your home appear occupied when you are away
Add convenience to your life by automatically turning lights on when you enter a room or a closet (YoLink Motion Sensor and YoLink Door Sensor sold separately)
Potentially lower your power bills by turning off energy-draining lighting or devices when not in use
Use the YoLink app to control devices based on your time-of-day and day-of-week schedule
Use the YoLink app to create custom automation, such as controlling connected devices when motion is detected (Motion Sensor sold separately)
Use the YoLink app to create custom scenes, such as setting your lighting to personalized levels for bedtime or movie night
Extremely easy and fast installation using the YoLink app with Scan & Play

APPLICATIONS:

In addition to the control of installed lighting, or the control of receptacles wired to the In-Wall Switch, other popular uses include ceiling fans, kitchen or bathroom exhaust fans, and gas fireplaces control
Use the YoLink smartphone app to remotely power on/off connected 120V-powered lighting or equipment

SUGGESTED PRODUCTS:

is required. Starting your first YoLink system? Consider one of our
Pair your In-Wall Switch with the and/or , to activate connected lights when motion is detected or a door is opened
Pair your In-Wall Switch with the , to automatically turn on bathroom exhaust fans during showers and baths
Pair your In-Wall Switch with the for hard-to-reach control, adding convenience to your life

REQUIREMENTS:

A neutral wire is required; the In-Wall Switch will not function without a neutral wire
YoLink Hub with an internet connection (wired Ethernet or 2.4GHz Wi-Fi). Refer to the Hub user guide for additional information
Smartphone or tablet running iOS 9 or higher, Android 4.4 or higher
Tools Required, Including But Not Limited to: Phillips screwdriver, slotted screwdriver, electrical tape, wire nuts, wire stripper tool, voltage multimeter, or voltage tester tool
Installation Difficulty Level: Moderately-Easy for existing switch replacement, potentially Difficult for new locations

TECHNICAL SPECS:

Semtech® LoRa® RF Module YL09 microcontroller with 32-Bit RISC processor
ETL-Listed
Color: White
Screw Terminals Size: 10 – 14 AWG wire
AC Input Power: 100 – 120VAC, 60Hz
AC Output Rating: 100 – 120VAC, 10 Amps Max. Resistive, 2 Amps Max. Inductive
Maximum Load (Watts):
Incandescent: 960
Fluorescent: 400
LED: 200
Dimensions [L x W x D]: 2.69 x 1.19 x 1.34 inches (68.33 x 30.23 x 34 mm) (Excludes faceplate dimensions)
Environmental:
Operating Temperature Range: -22°F – 158°F (-30°C – 70°C)
Operating Humidity Range: <95% non-condensing
Intended for indoor use only

PACKAGE CONTENTS:

PLEASE NOTE:

The In-Wall Switch is packaged with a quick start guide, only. Please download the current
Consider hiring a qualified electrician if you are not comfortable working with electricity!
